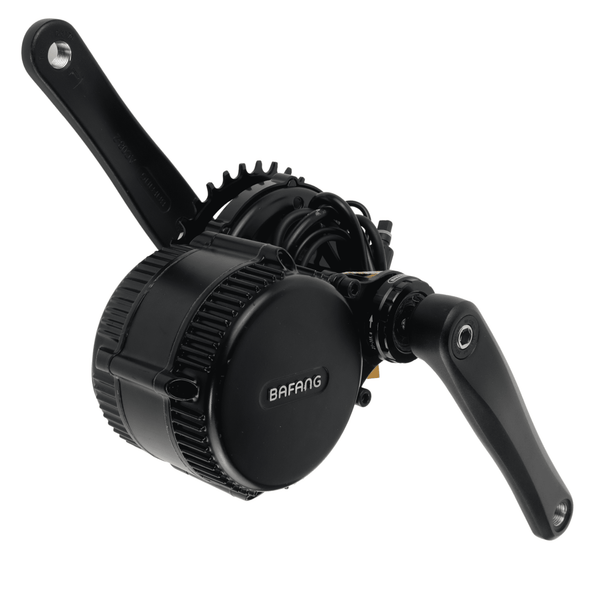

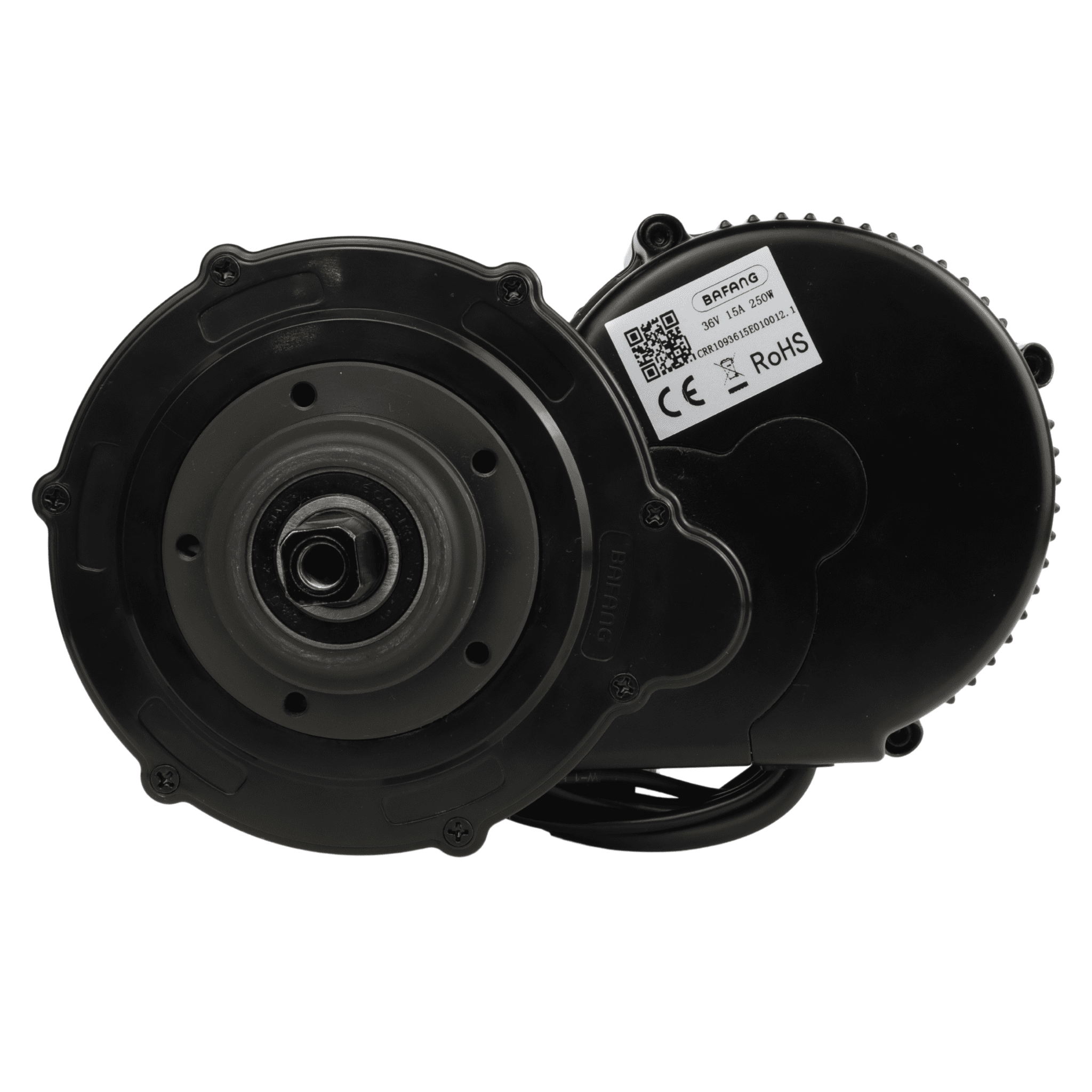

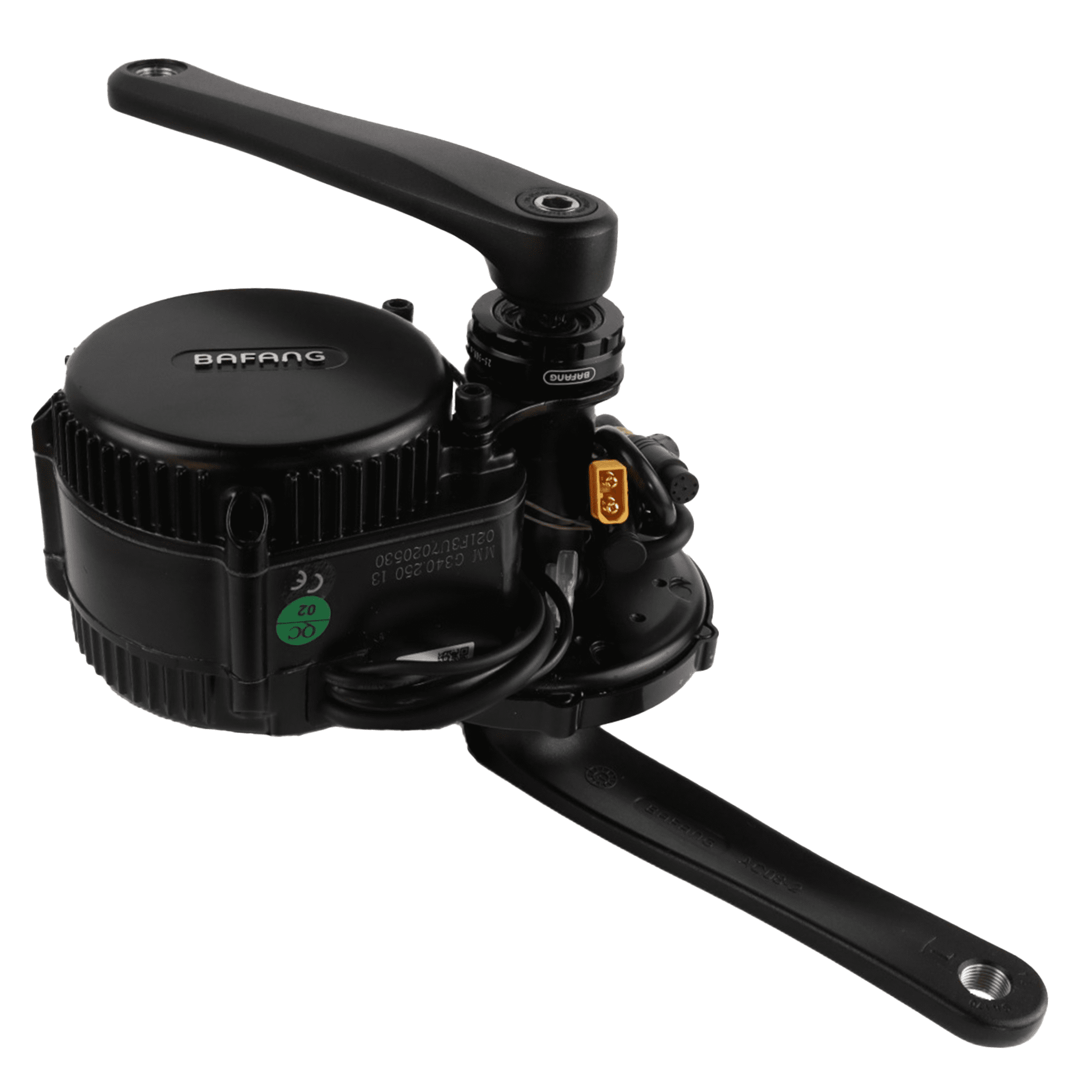

Description: This Bafang BBS01B 36V 250W Mid-Drive Electric Bike Conversion Kitis the perfect choice for a flawless yet cost-effective Electric Bike. Bafang is renowned for producing motors that are regarded as the very best in the conversion world. Their motors are waterproof for all riding conditions, internally lubricated with sealed casings, and contain a nylon gear for a silent, yet exquisite ride every time! The 250w motor is best suited for U.K. use as this is the legal riding limit. The integrated speed sensor and pedal assistance recognises and aids manual output to boost your ride by up to 15mph. Five pedal assistance modes are available, so you can conquer the toughest of rides.

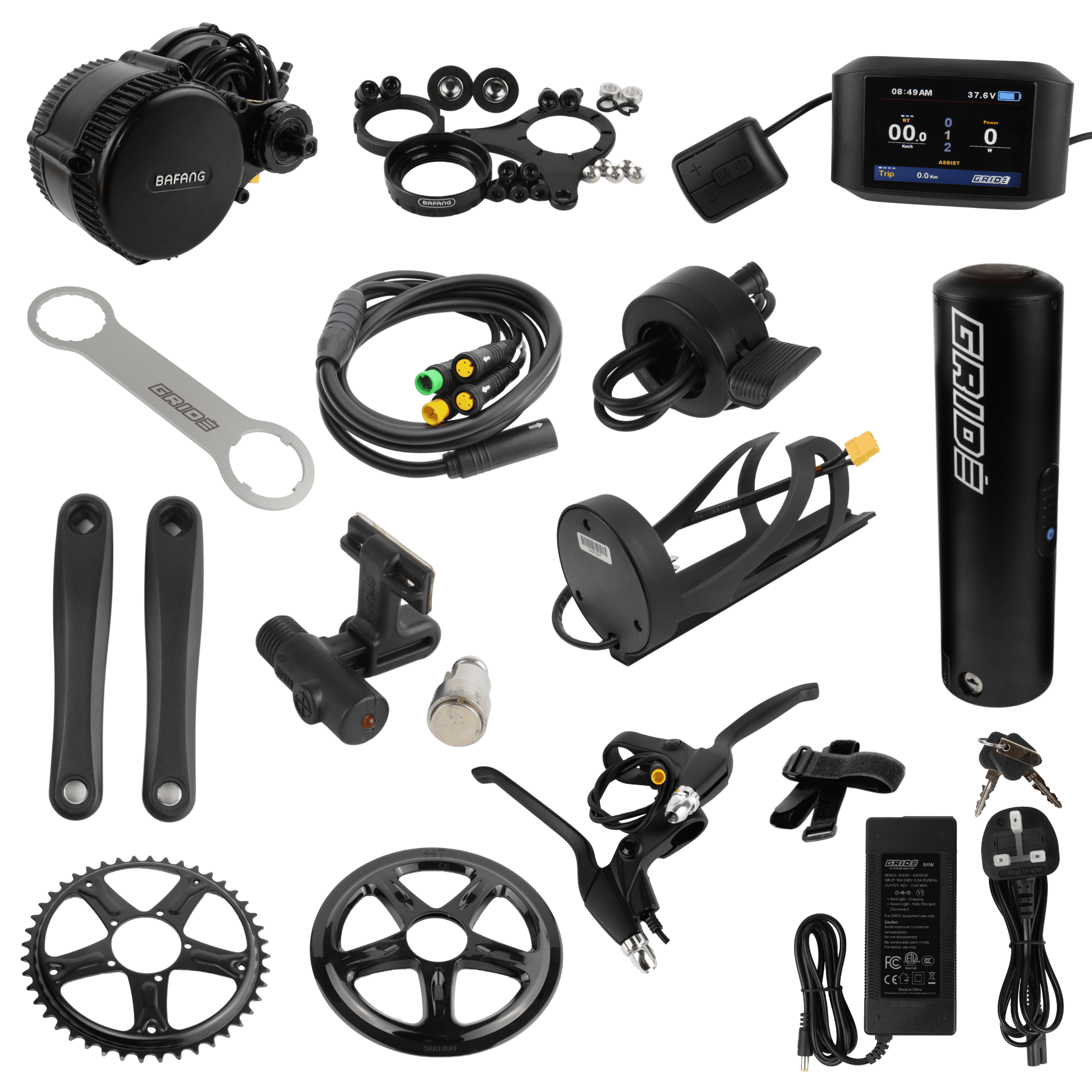

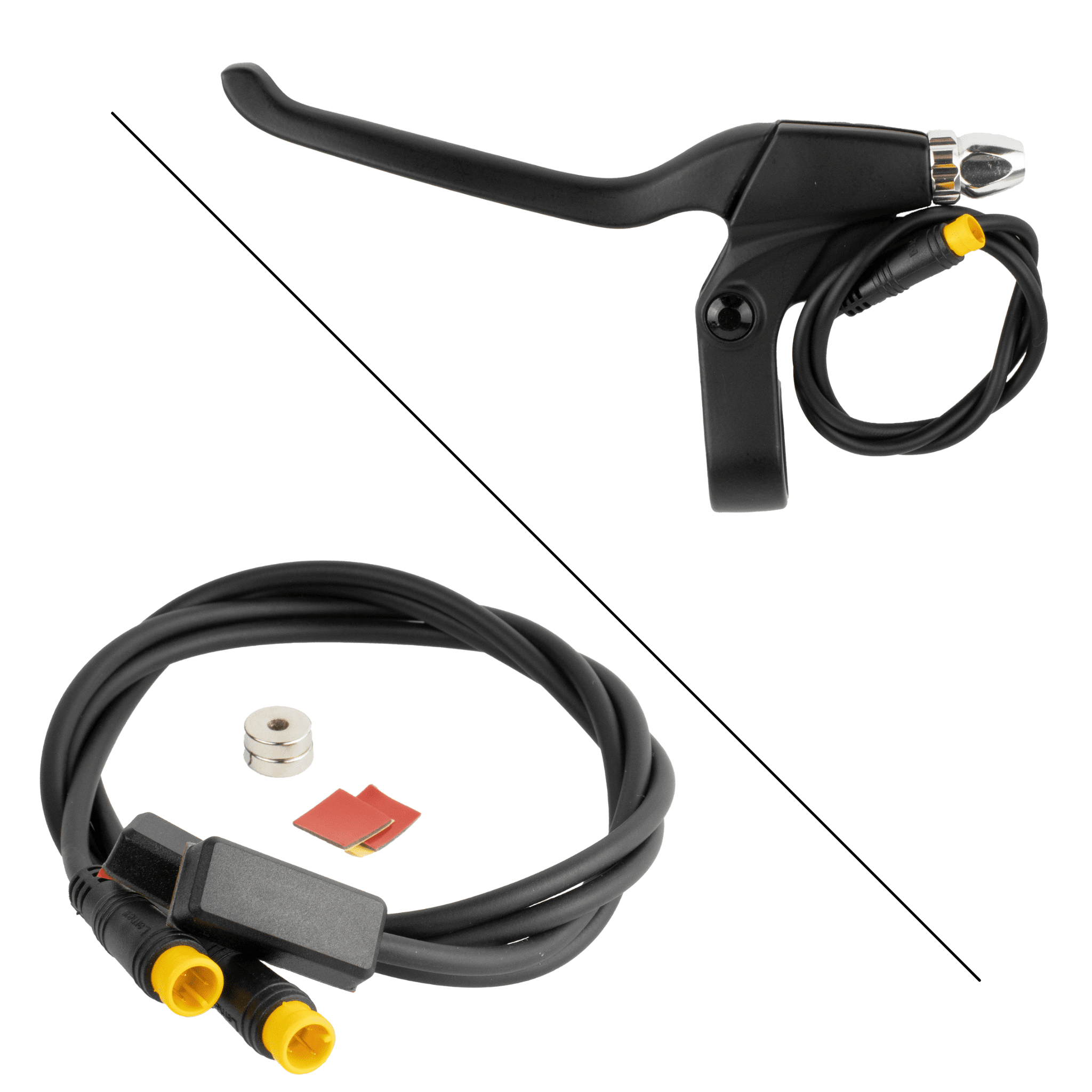

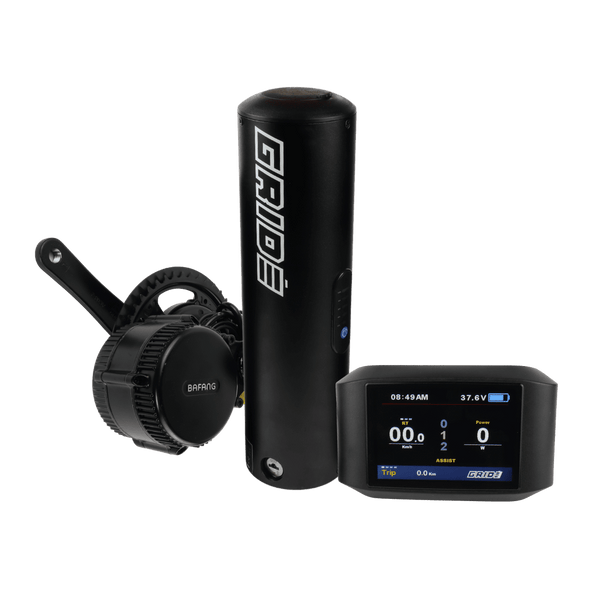

This Kit Includes: Bafang 36V 250W Mid Drive Motor (With XT60 Battery Connector), GRIDE 10.5Ah Li-Ion Battery (With XT60 Battery Connector), Battery Frame Mount, Velcro Cable Strap, Keys, 2A Power Adaptor (UK Plug), 750C LCD Display, Thumb Throttle, E-Brakes, (Can Upgrade to Brake Sensors for Either Hydraulic Brakes or Integrated Shifters), Speed Sensor & Magnet, EB-BUS (1T4) Cable, Cranks, Chainring, Chainguard, Bottom Bracket Installation Tool, All Mounting Hardware (Inc. 73mm BB Spacer for Larger Bottom Brackets). 750C Display: This kit's display (750C) offers the following; Speed Display & Lever Indicator, Power Display & Lever Indicator, Pedal Assistance Mode 0-5, Headlight Indicator, Brake Indicator, Riding Time, Mileage Indicator, Battery Indicator, Speed Warning, Riding Timer & Error Code Detection.

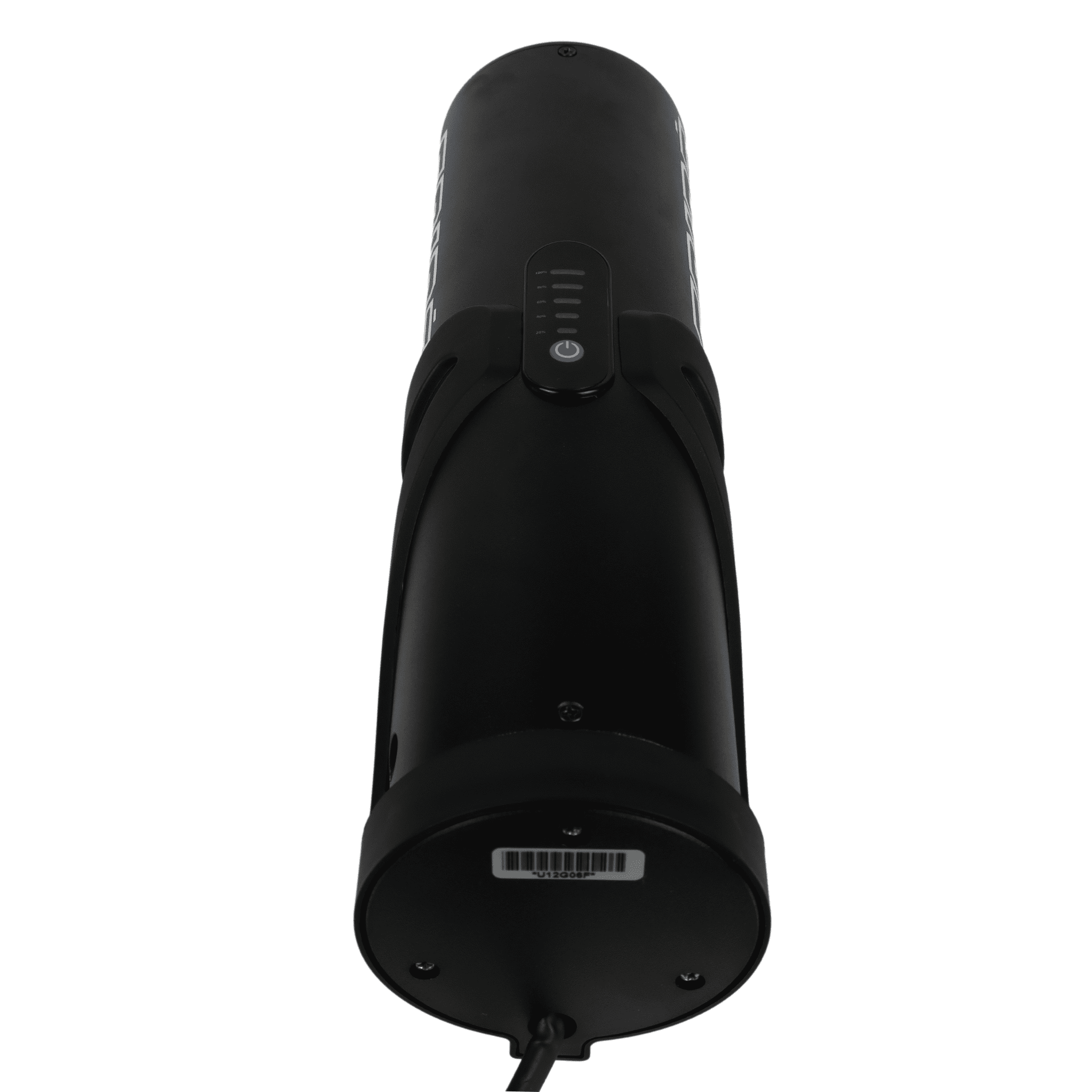

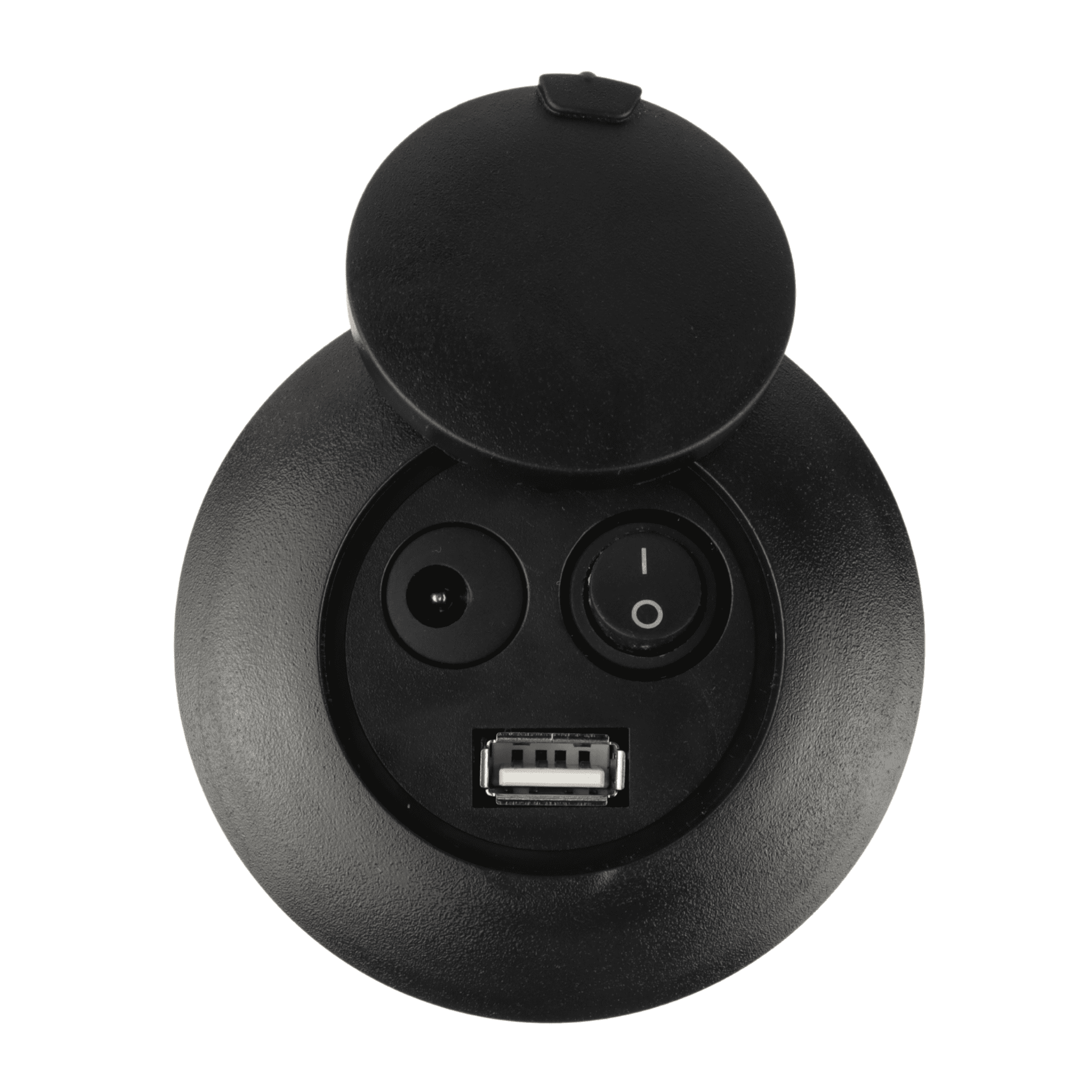

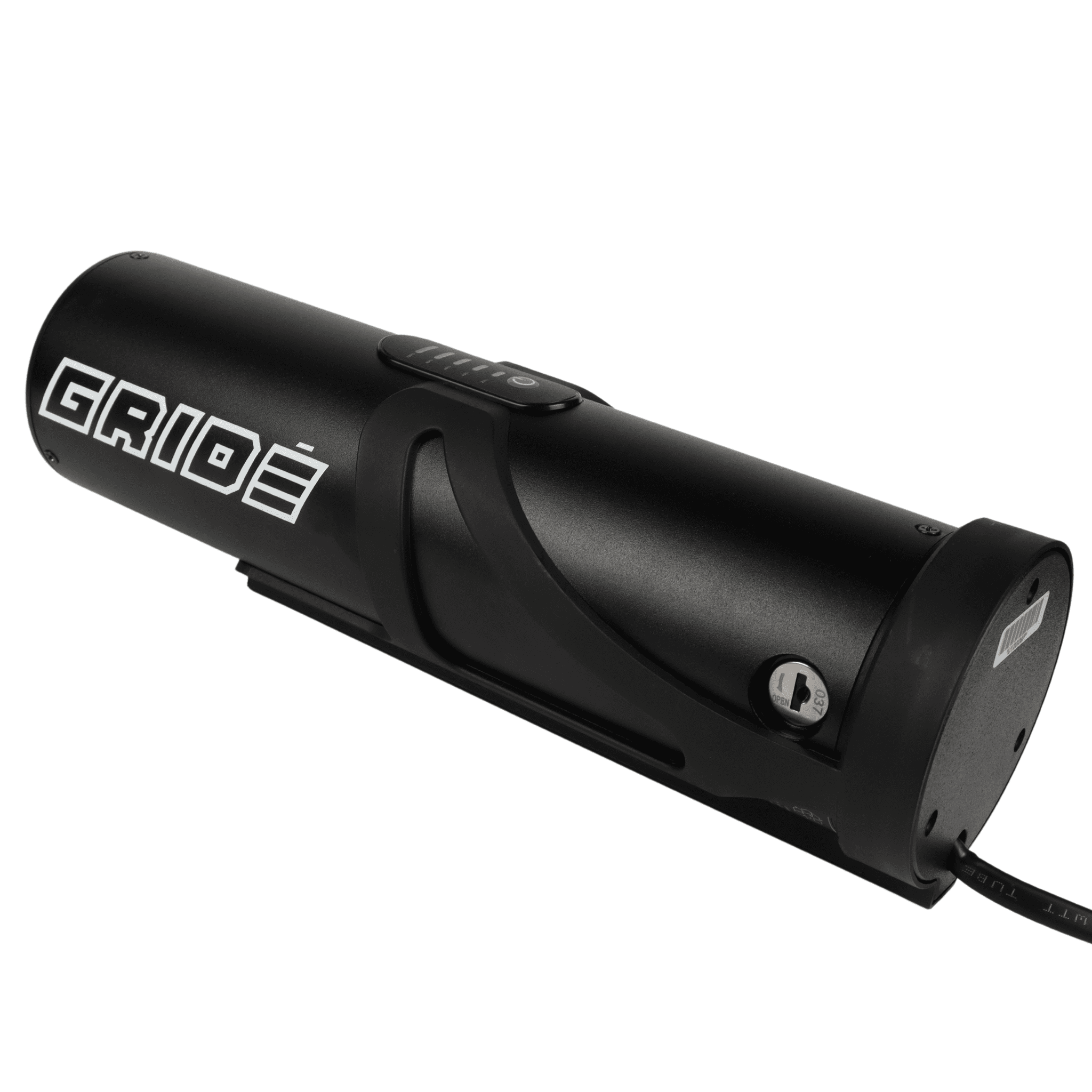

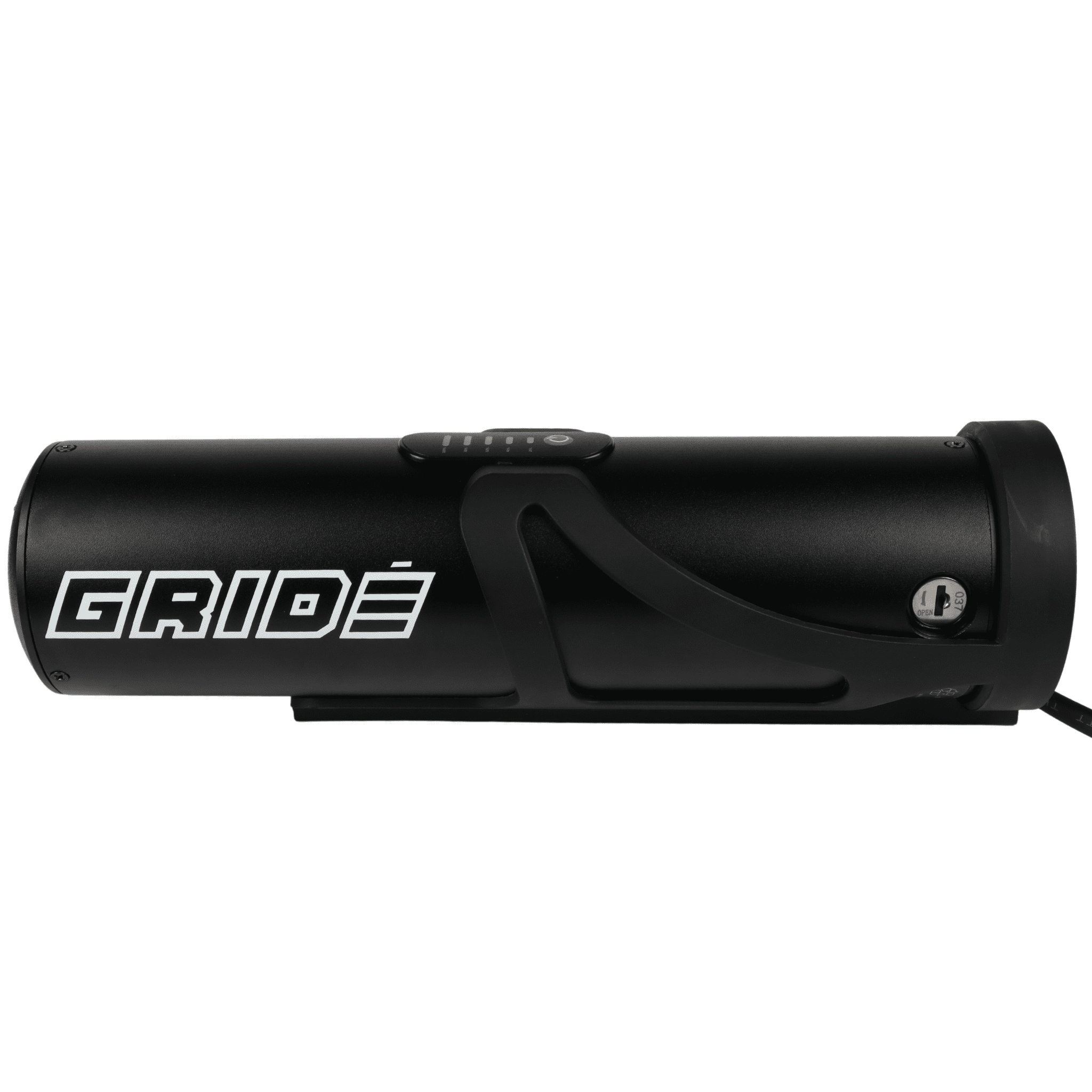

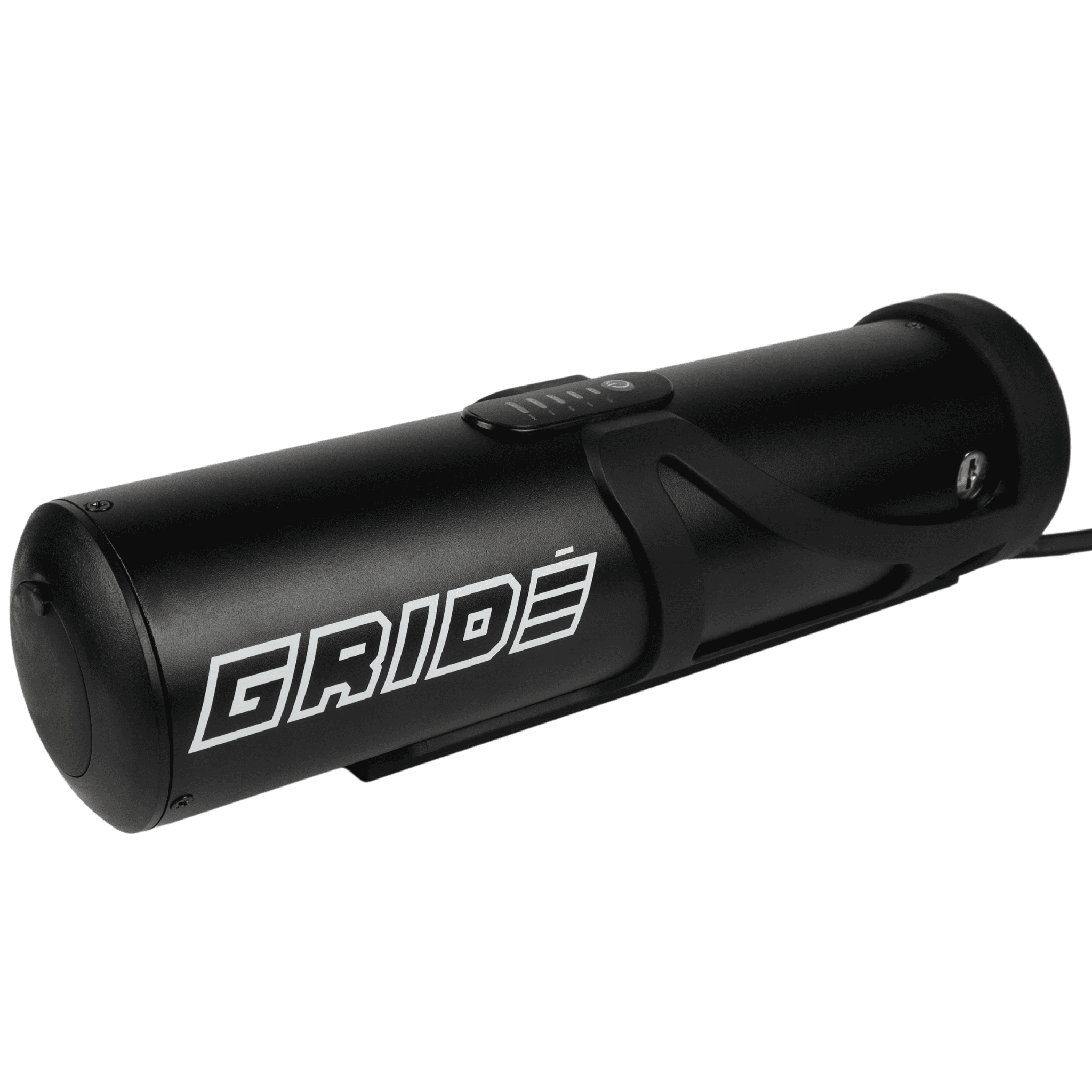

10.5Ah Battery: Our batteries guarantee reliability and sustained performance in all conditions to ensure you get the most efficient ride every time. This battery will cover an approximate 30-mile range and has a display to show battery percentage. Each battery is complete with a USB socket for charging devices on the go. The battery mount is installed onto the bike using the bottle cage mounting holes already located on the frame's downtube. The battery is then locked and secured into the mount using the provided keys.
Bike Fitting: This motor weighs approximately 4kg and is designed to fit bottom brackets with a length between 68mm - 73mm (2.68 - 2.87”). If you have a Fat Bike, with a 100mm - 120mm bottom bracket length, get in touch with us, as you will require an axle extension.The inner diameter of the bottom bracket should be no less than 33.5mm. If you own a carbon bike or have a press-fit bottom bracket, this motor may not be suitable, so please get in touch with us at firstname.lastname@example.org before you purchase. More information can be found about bike compatibility on our Bike Information page.
Warranty: There are 12 months guaranteed warranty on all products with a free repair.
