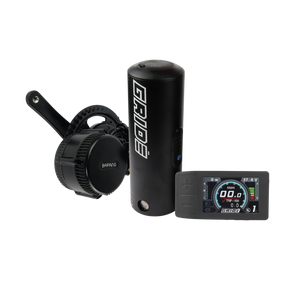

ThisBBS01B 36V 250W Mid-Drive E-Bike Conversion Kitis the perfect choice for a flawless yet cost-effective alternative to an otherwise expensive Electric Bike. Bafang is renowned for producing motors that are regarded as the very best in the conversion world. Their motors are waterproof for all riding conditions, internally lubricated with sealed casings, and contain a nylon gear for a silent, yet exquisite ride every time! The 250w motor is best suited for U.K. use as this is the legal riding limit. The integrated speed sensor and pedal assistance recognises and aids manual output to boost your ride by up to 15mph. Five pedal assistance modes are available, so you can conquer the toughest of rides.

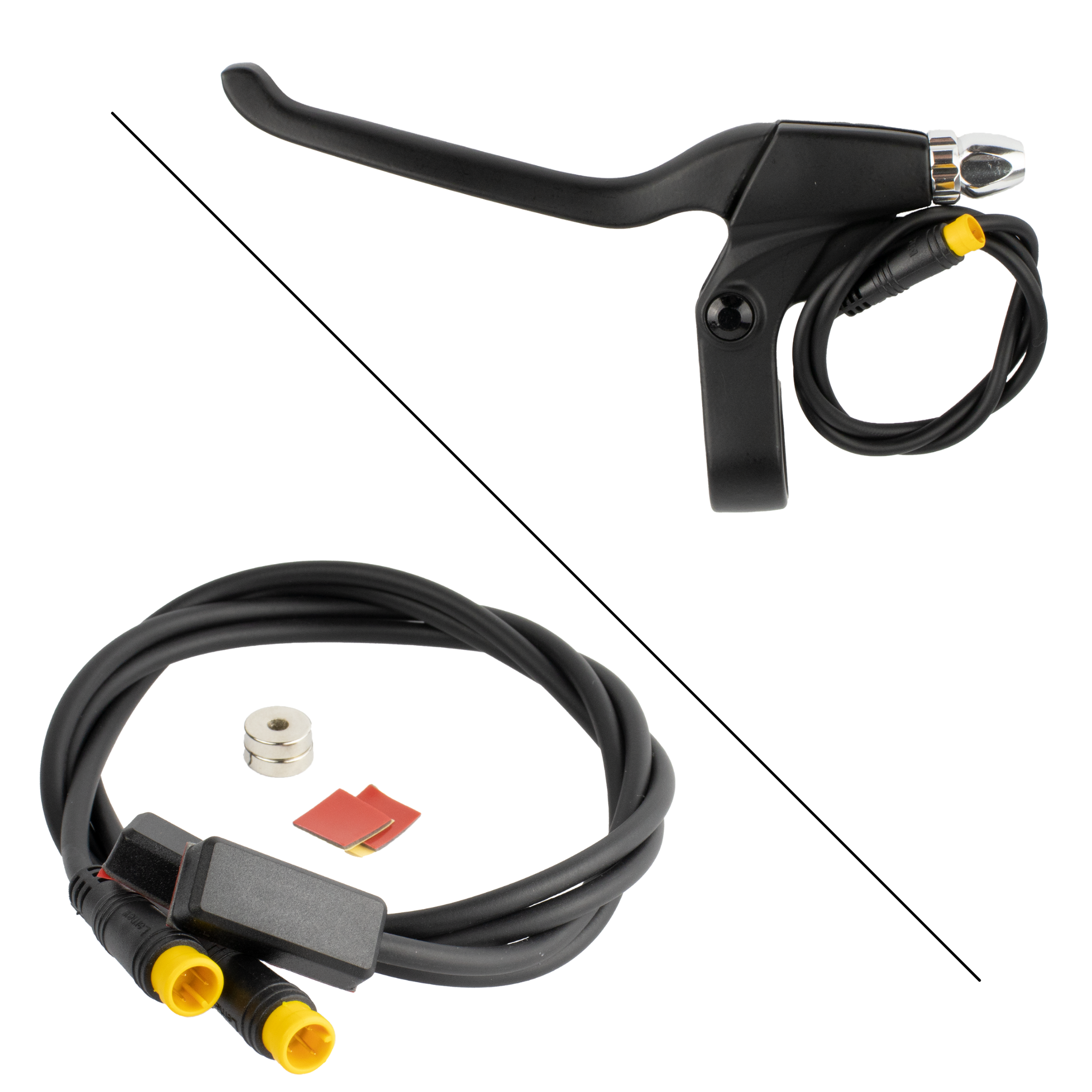

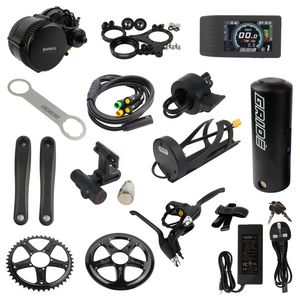

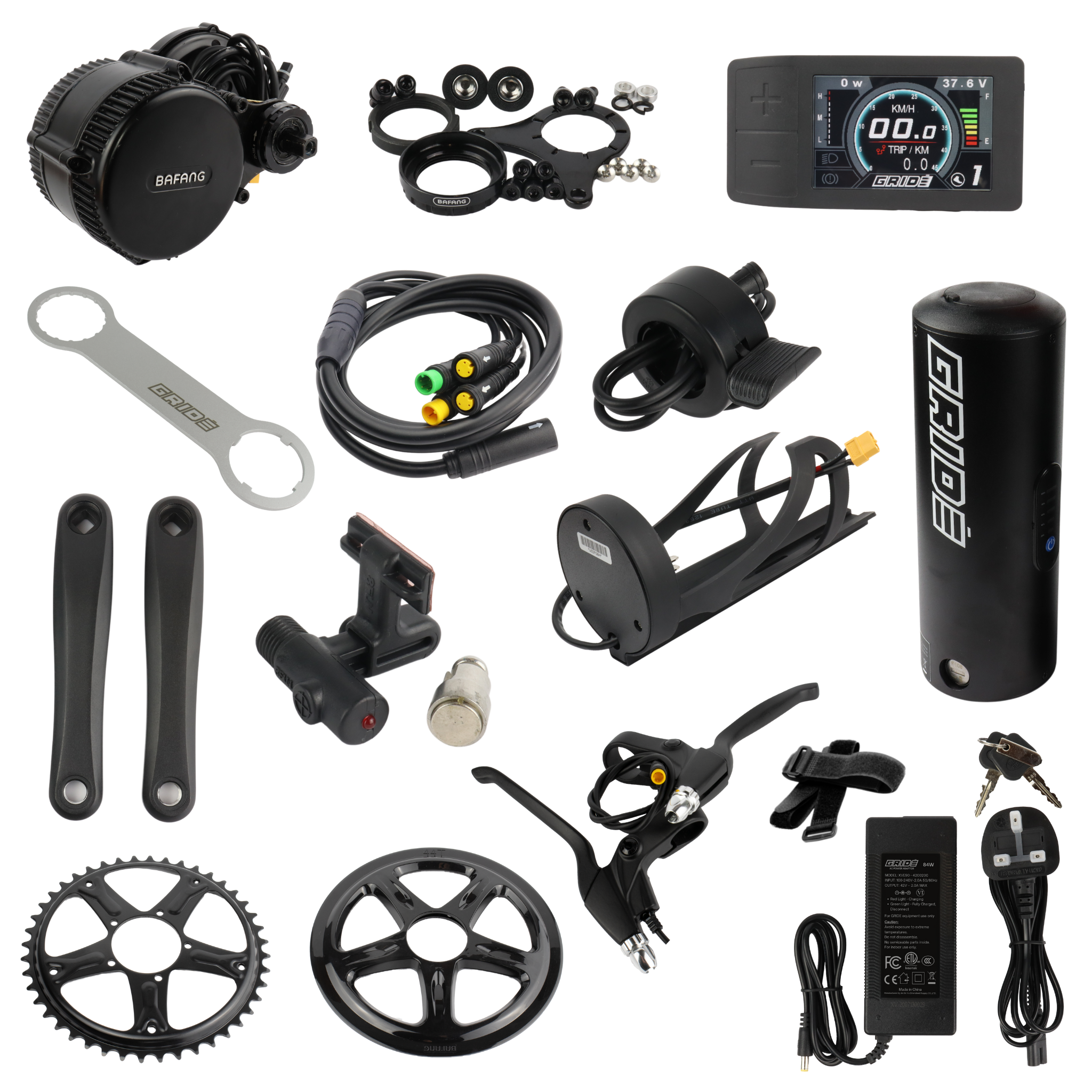

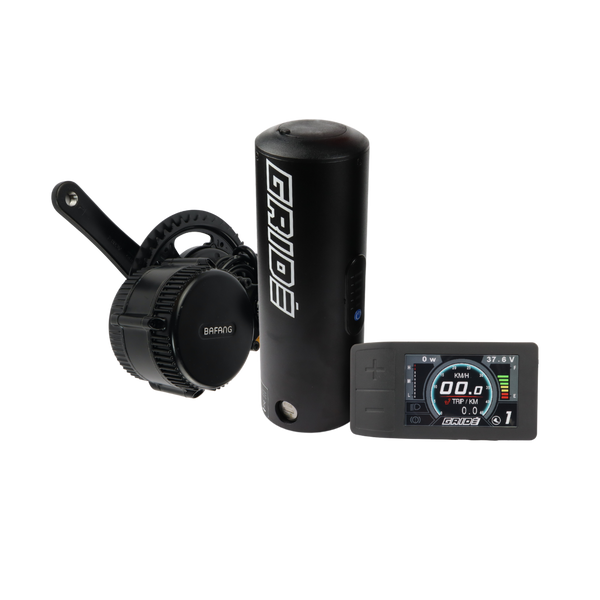

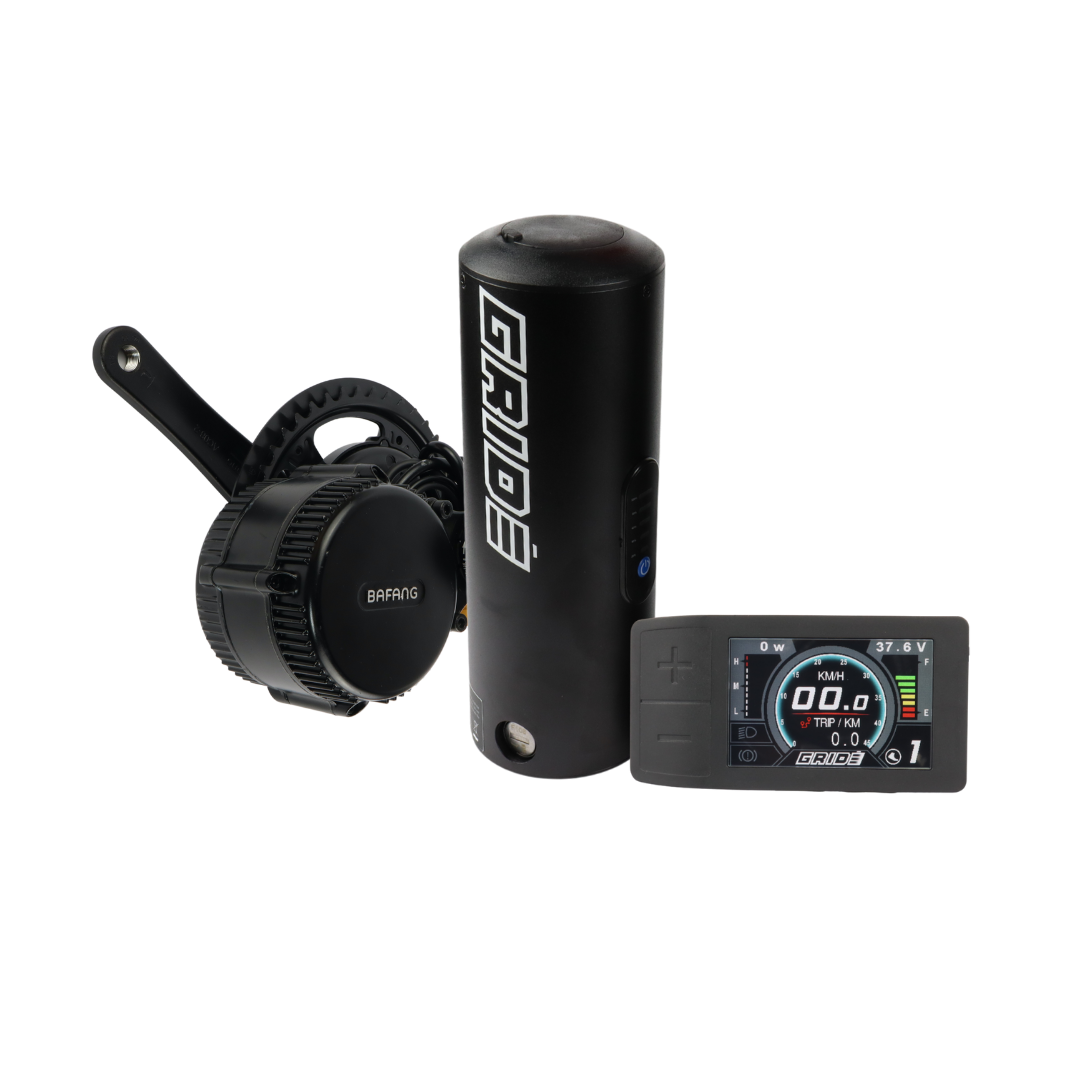

1x Bafang 36V 250W Mid Drive Motor (With XT60 Battery Connector), 1x GRIDE 7Ah Li-Ion E-Bike Battery (With XT60 Battery Connector), 1x 500C LCD Display, 1x Thumb Throttle, 2x E-Brakes, (Can Upgrade to Brake Sensors for Either Hydraulic Brakes or Integrated Shifters), 1x Speed Sensor & Magnet, 1x EB-BUS (1T4) Cable, 2x Cranks, 1x Chainring, 1x Chainguard, 1x Bottom Bracket Installation Tool, 1x All Mounting Hardware (Inc. 73mm BB Spacer for Larger Bottom Brackets).
This kit's display (500C) offers the following; Power Indicator, Pedal Assistance Mode 0-5, Speed Display & Lever Indicator, Battery Indicator, Headlight Indicator, Mileage Indicator, Brake Indicator, Error Code Detection & Riding Timer.

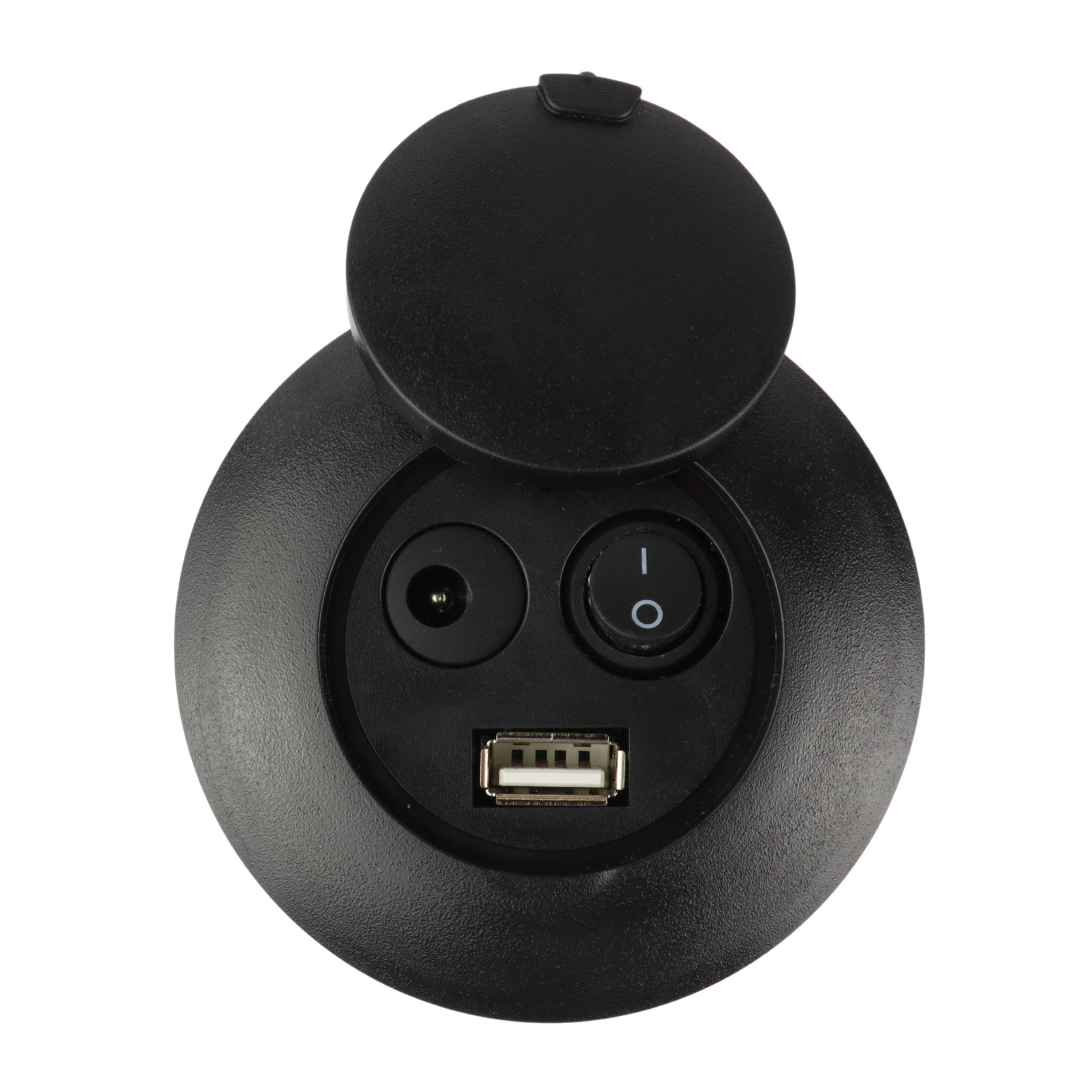

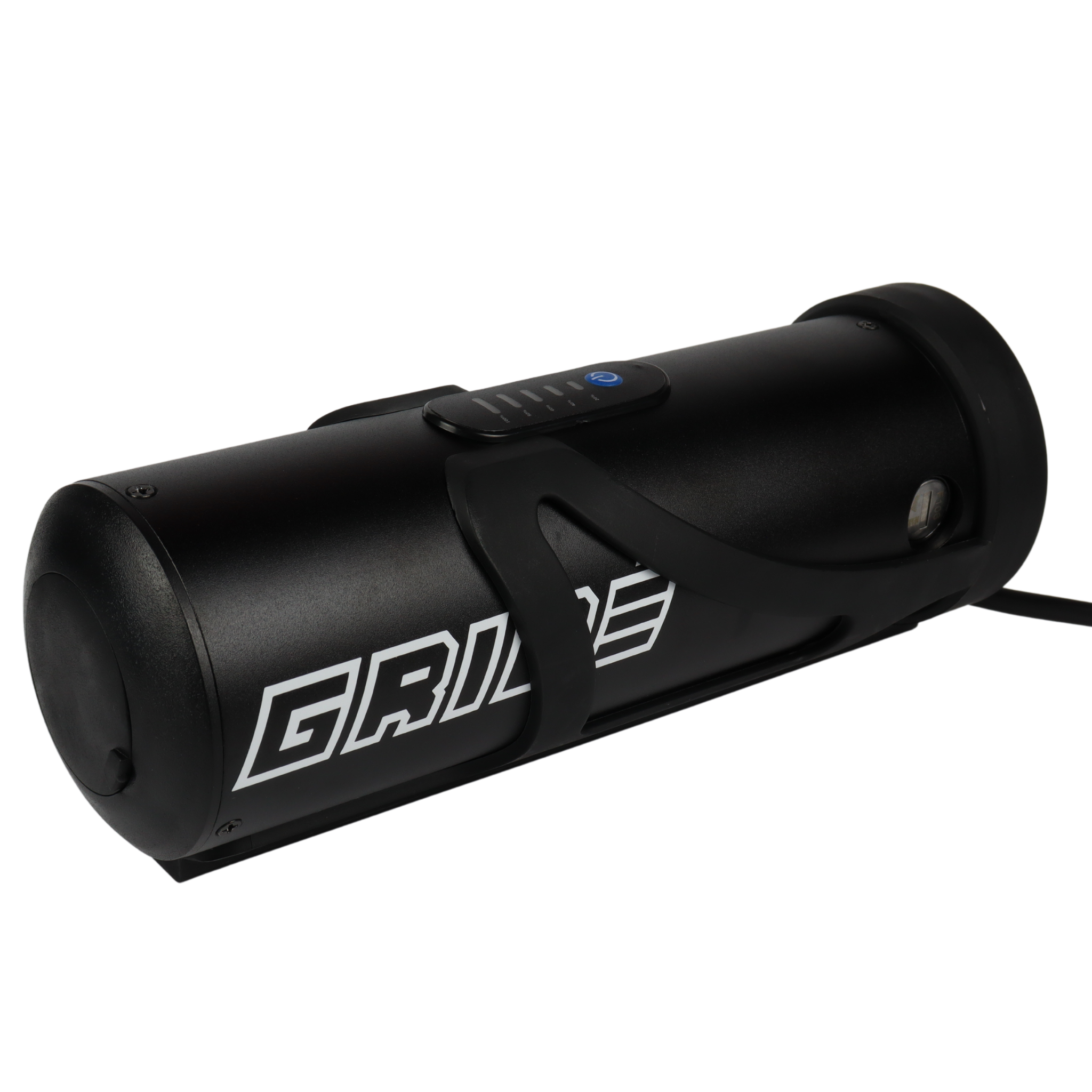

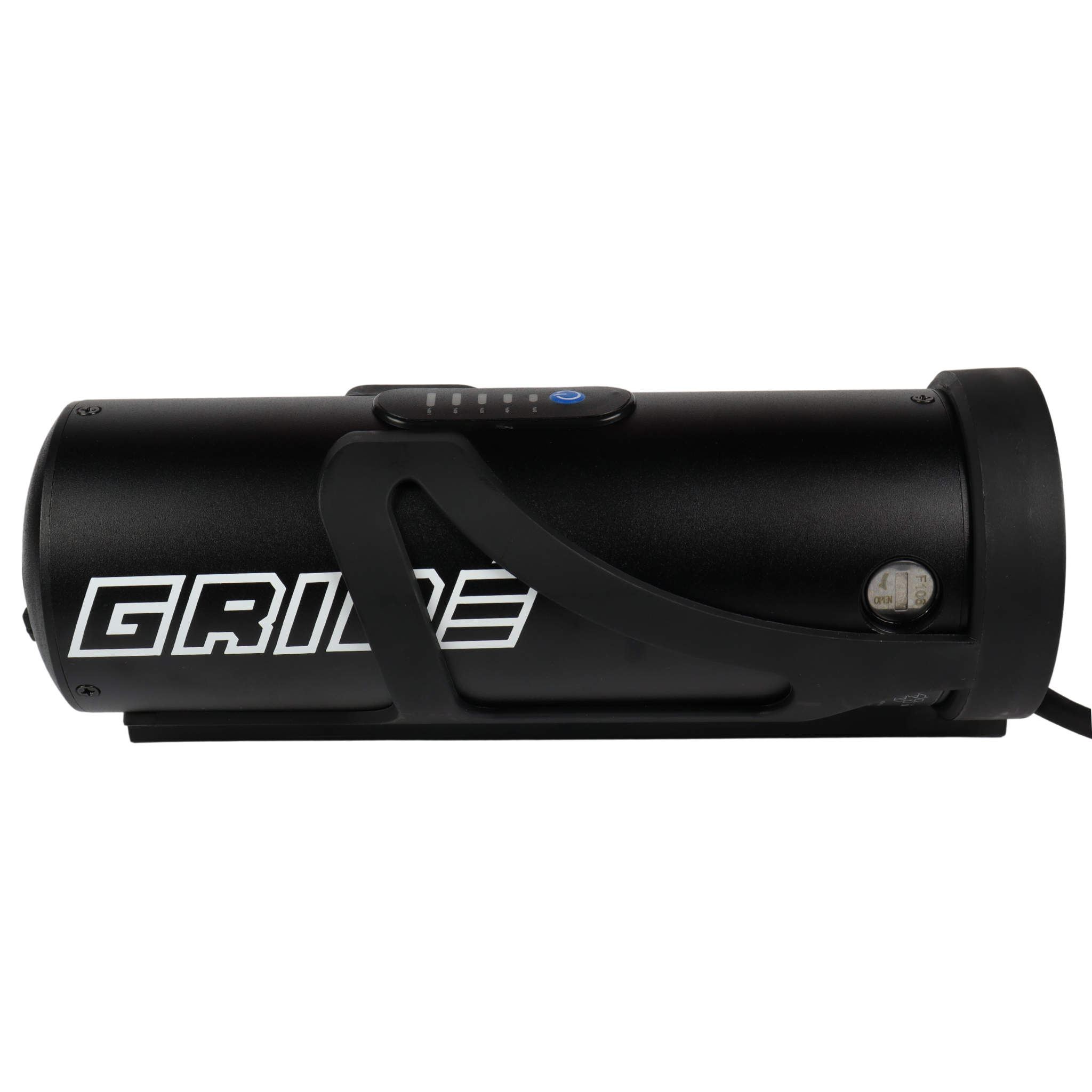

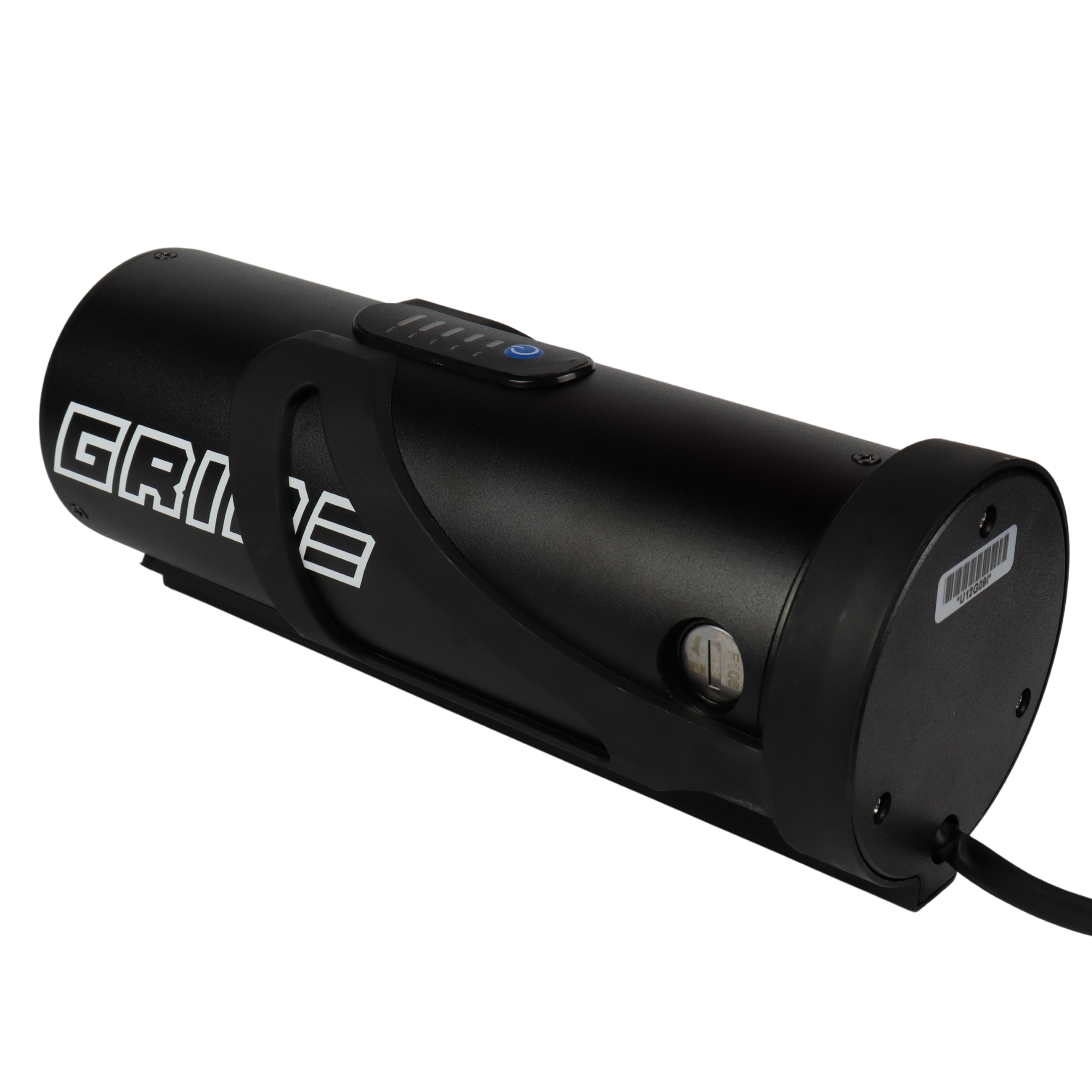

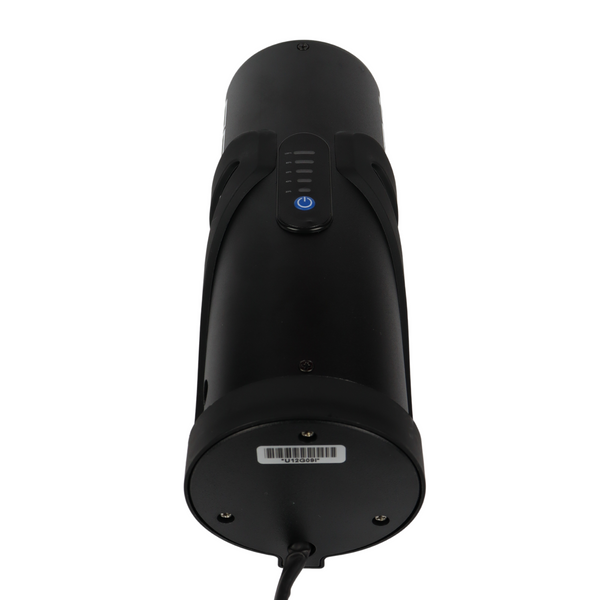

Our batteries guarantee reliability and sustained performance in all conditions to ensure you get the most efficient ride every time. This battery will cover an approximate 20-mile range and has a display showing battery percentage. The battery is best suited for motors ranging from 250-500w. Our batteries are supplied with XT60 connecting plugs.

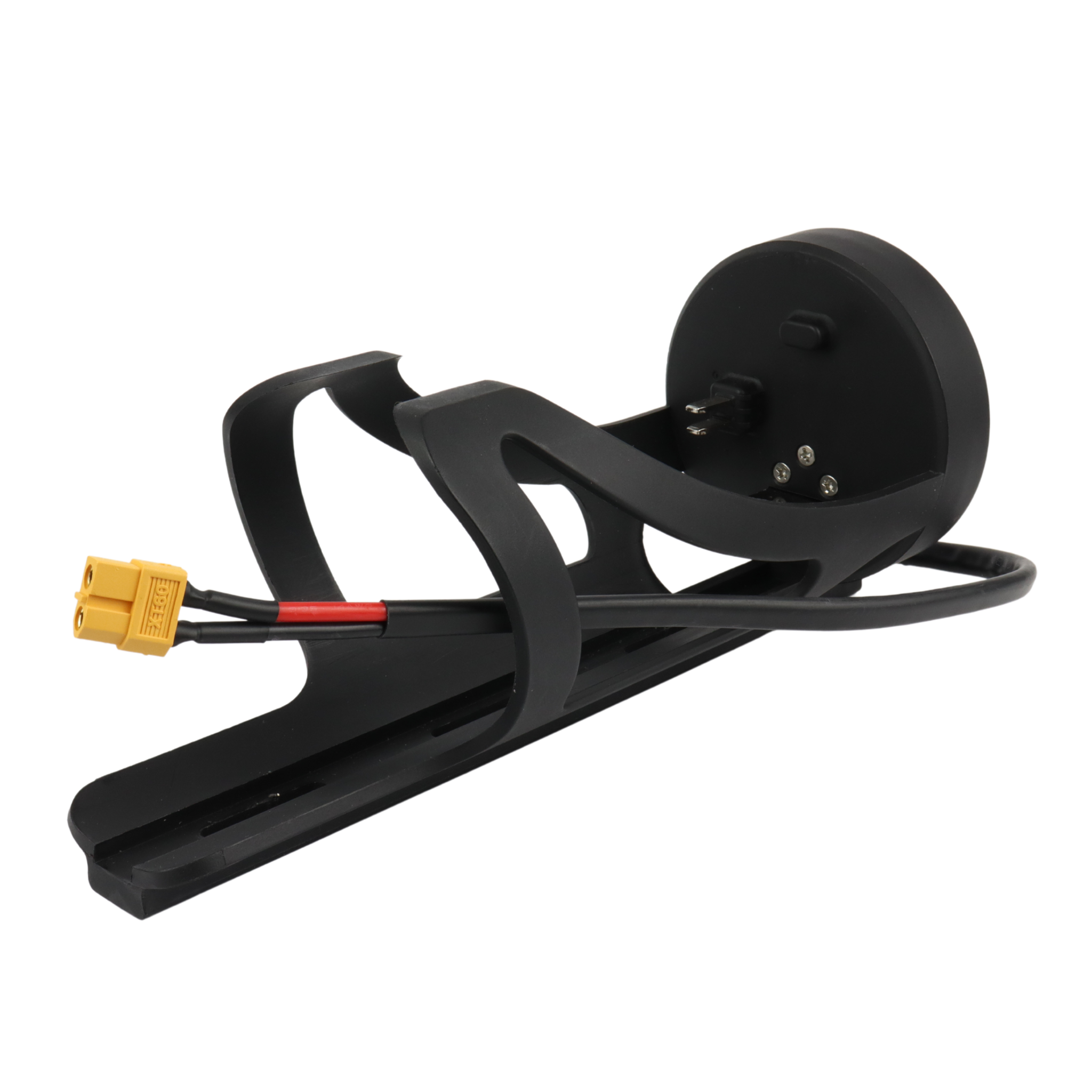

Each unit includes a removable lithium-ion battery, a frame mount, all mounting hardware, and a 2A power adaptor (UK plug). The battery holder is mounted onto the bike using the bottle cage mounting holes located on the frame's downtube.
36V 7Ah Battery Specification:
Rating Capacity: 7Ah
Energy: 250 Wh
Rated Voltage: 36V
Mileage Range: Approximately 20 miles
Battery Weight: 3.0kg
Battery Dimensions: 190mm Length x 90mm Width

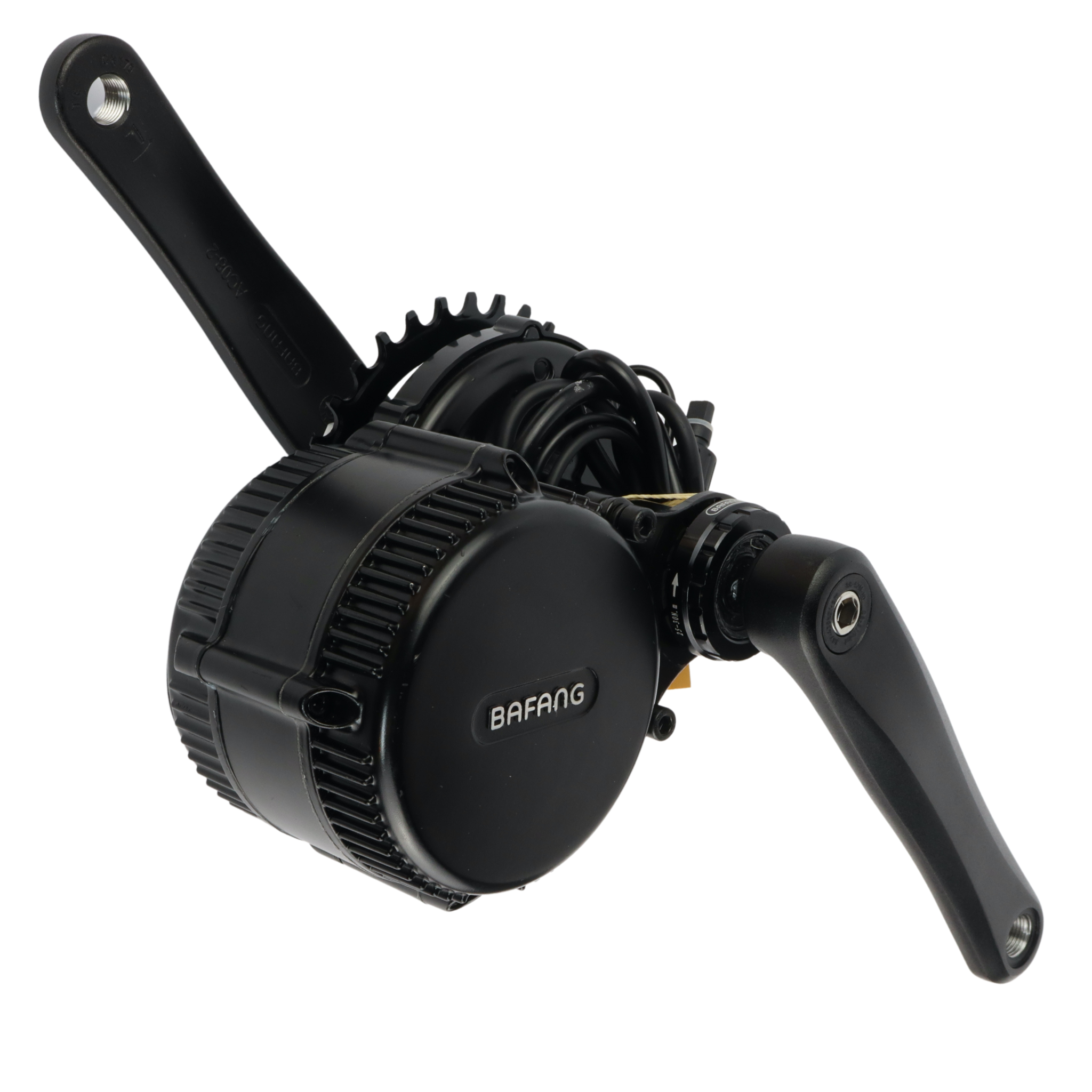

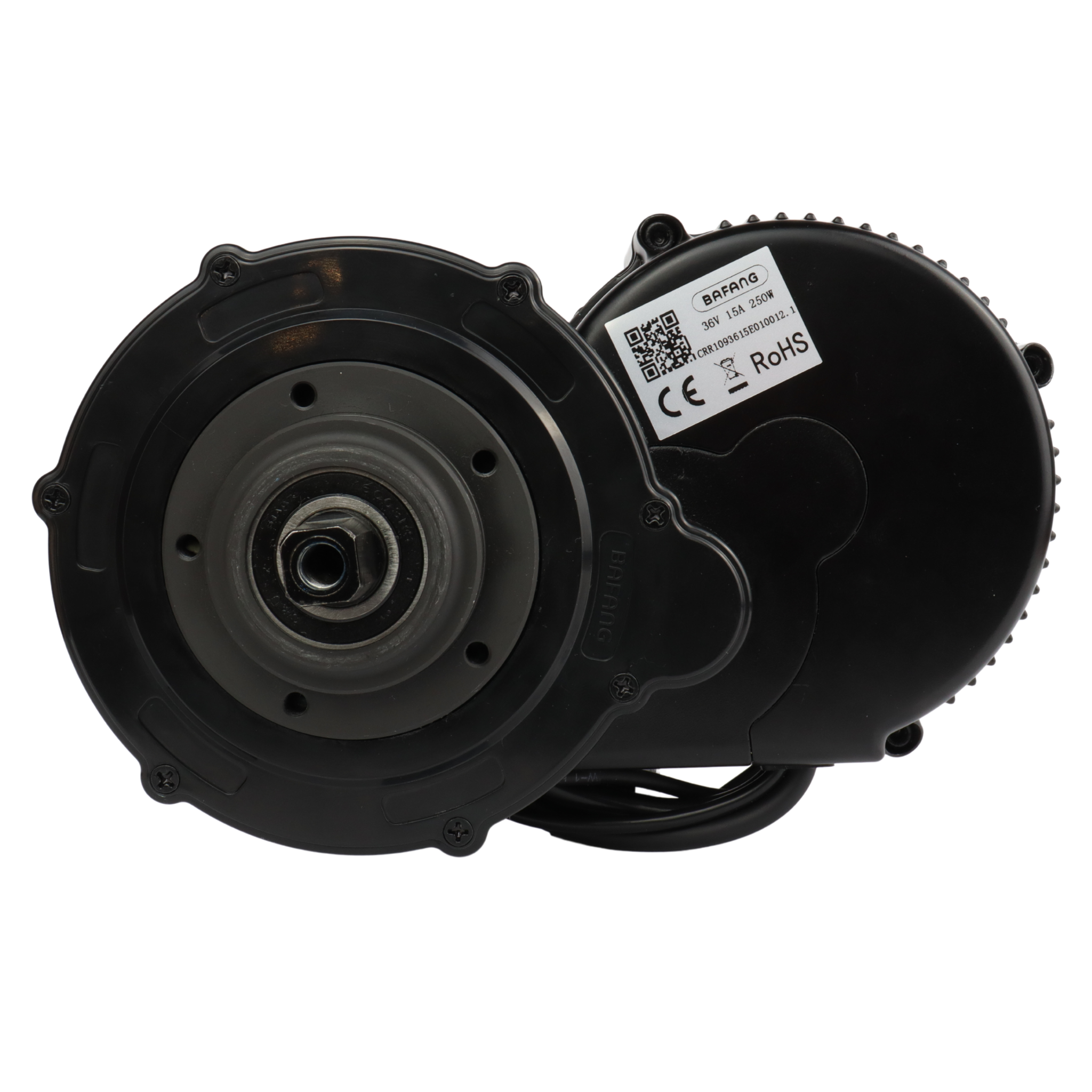

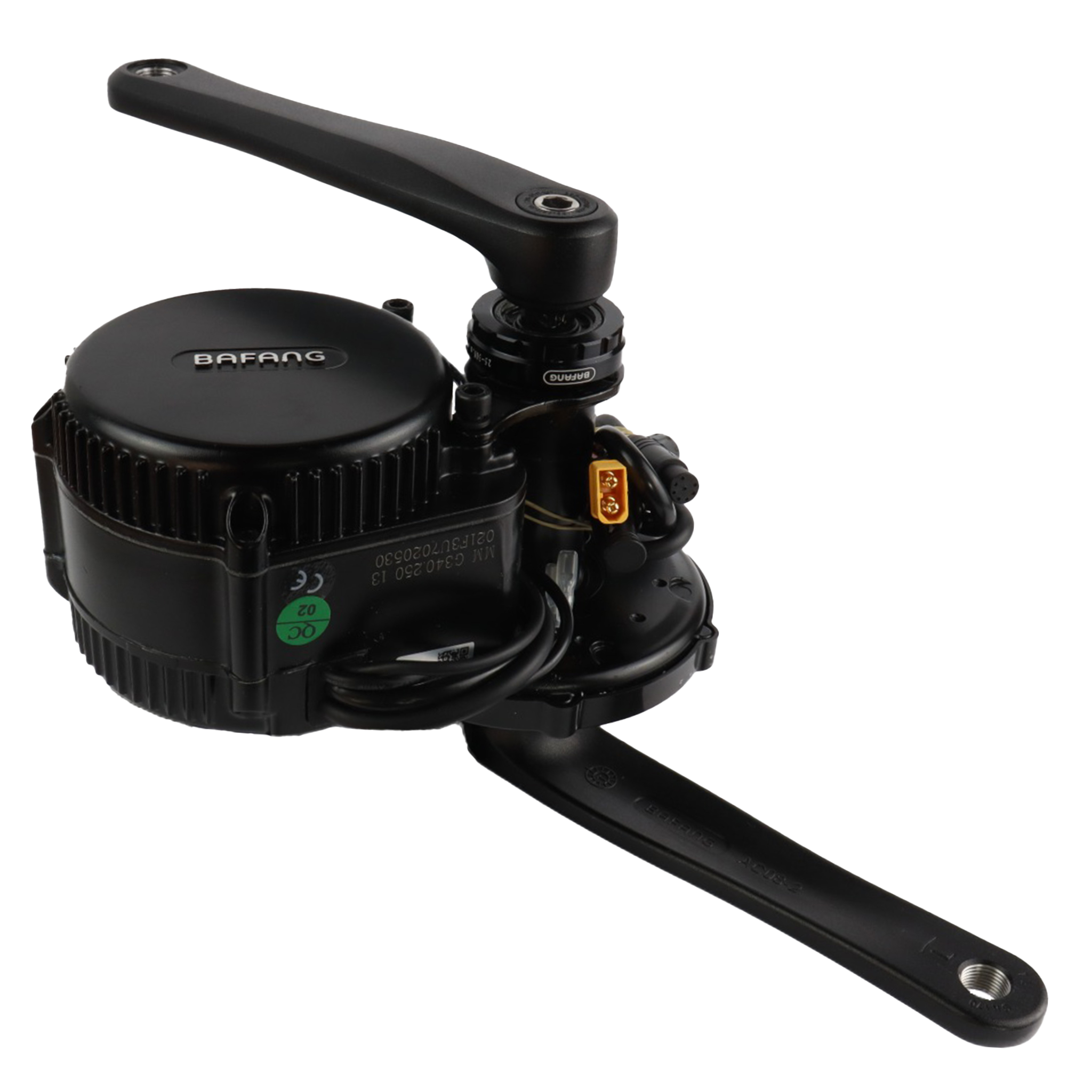

This motor weighs approximately 4kg and is designed to fit the bottom brackets with a length between 68mm - 73mm (2.68 - 2.87”). The inner diameter of the bottom bracket should be no less than 33.5mm also. Extra washers and bolts are included in the kit to fit all bottom brackets up to 73mm. If you own a carbon bike or have a press-fit bottom bracket, this motor may not be suitable, so please get in touch with us at firstname.lastname@example.org before you purchase. More information can be found about bike compatibility in our help section.
There are 12 months guaranteed warranty on all products with a free repair.
